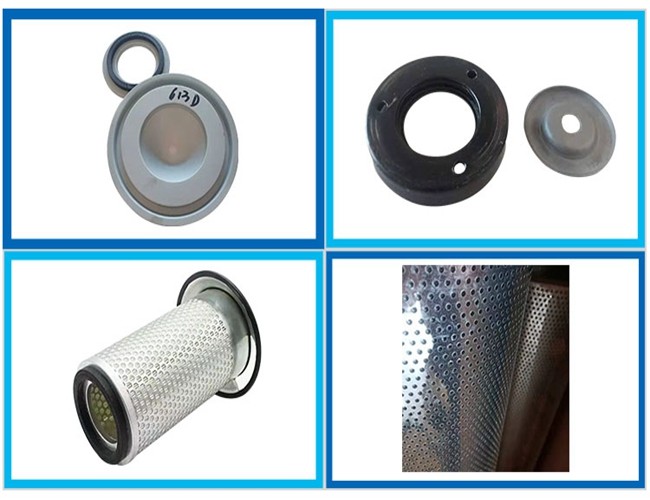

Cold Rolled Square Circular Punching Upper And Lower Covers Filter End Caps
1. Product Description

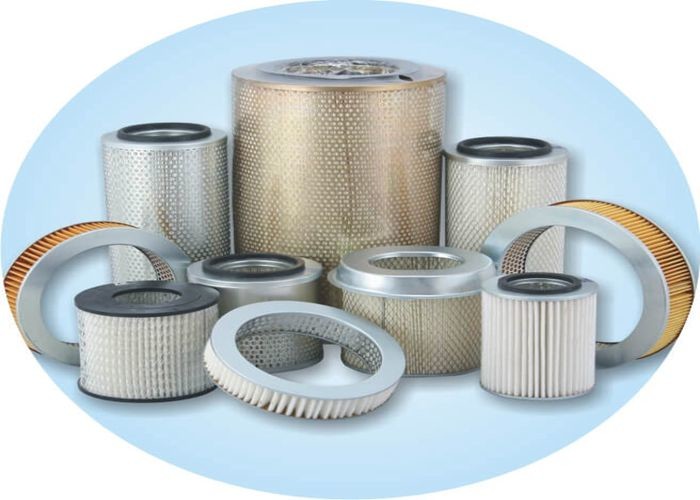

The hydraulic oil filter element is mainly made of stainless steel woven mesh, sintered mesh, and iron woven mesh. Since the filter material it uses is mainly glass fiber filter paper, chemical fiber filter paper, and wood pulp filter paper, it has high concentricity and can withstand high pressure. , Good straightness, stainless steel material, without any burrs, to ensure the characteristics of long service life, its structure is made of single-layer or multi-layer metal mesh and filter material, and its number of layers and composition wire mesh in specific use The number of meshes depends on different conditions of use and purpose.
2. Specifications
| Open Round End Cap with Tri-Bolt Holes |
| | Inches | Millimeters |
| Outer diameter | 12.75 | 323.85 |
| Inner diameter | 8.5 | 215.9 |
| Inner height | 0.54 | 13.716 |
| Outer height | 0.5 | 12.7 |
| Inner rim diameter | 6.75 | 171.45 |
| Open Round End Cap with Outer Lip |
| | Inches | Millimeters |
| Outer diameter | 12.75 | 323.85 |
| Inner diameter | 8.5 | 215.9 |
| Inner diameter | 0.625 | 15.875 |
| Outer height | 0.368 | 9.3472 |
| Lip | 0.375 | 9.525 |
| Open Round End Cap | |
| | Inches | Millimeters | |
| Outer diameter | 12.75 | 323.85 | |
| Inner diameter | 8.5 | 215.9 | |
| Inner height | 0.5 | 12.7 | |
| Outer Height | 0.5 | 12.7 | |
| Closed Round End Cap | |
| | Inches | Millimeters | |
| Outer diameter | 12.75 | 323.85 | |
| Inner diameter | 8.375 | 212.725 | |
| Inner height | 0.5 | 12.7 | |
| outer height | 0.5 | 12.7 | |
| Closed Round End Cap with Bolt Hole | |
| | Inches | Millimeters | |
| Outer diameter | 12.75 | 323.85 | |
| Inner diameter | 8.375 | 212.725 | |
| Inner height | 0.5 | 12.7 | |
| Outer height | 0.5 | 12.7 | |
| Bolt Hole | 0.625 | 15.875 | |
| Open Round End Cap with Flange | |
| | Inches | Millimeters | |
| Outer diameter | 5.75 | 146.05 | |
| Inner diameter | 2.5 | 63.5 | |
| Inner height | 0.5 | 12.7 | |
| Outer height | 0.278 | 7.0612 | |
| Closed Round End Cap | |
| | Inches | Millimeters | |
| Outer diameter | 5.25 | 133.35 | |
| Inner diameter | 2.5 | 63.5 | |
| Inner height | 0.875 | 22.225 | |
| Outer height | 0.172 | 4.3688 | |
3. Product advantage
We are a physical factory with 25 years of experience in production. We are strict with our products and pay attention to the quality and production as well as the details of the products. We promise that no middleman will make any profit from it, all the prices reported to you are ex-works prices.
4. Installation method
Spiral installation: The commonly used industrial dust filter installation method in the market is suitable for vertical, horizontal and oblique installation of the filter cartridge, that is, the welding scaffold of the dust collector panel, and extends to the height of the filter cartridge. Finally, weld a screw at the joint of the scaffold. During installation, the inside of the filter cartridge passes through the screw and scaffold, and the top of the filter cartridge passes through the screw and scaffold. The sealing ring is in contact with the mounting plate of the dust collector. At this time, find the threaded rod in the bottom mounting hole of the industrial dust removal filter element (the height and length of the threaded rod and the bracket need to be moderate). Then tighten the thread through the rotation of the nut, so that the industrial dust filter element is completely fixed, and the sealing ring is in complete contact with the mounting plate.
5. FAQ
1.Certificates:
RoHs,UL,SGS,MSDS,DIN53438
2.Payment terms:
50% deposit upon getting the order,balance against the B/L copy.
3.Delivery date:
About 7 working days(≤500pcs), special order is negotiable to be quicker.
4.Sample Terms:
We can supply 1-2 small samples for tree but express cost is covered by your side.
5.Minimum Order Quantity:
No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.
6.Price Terms:
EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.
7.Lead time:
3 Days for a 40ft container, weeks for two 40ft container.
