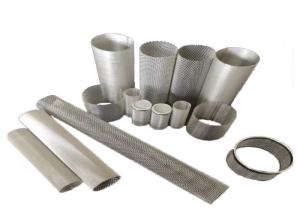

Heat Resistant And Wear-Resistant Stainless Steel Filter Cartridge Air Filters Material
1. Product introduction
It can be used as a supporting device beside the filter or alone. It has the effect of filtering various impurities in the filtering process. The product can be processed and customized according to the requirements. It has novel structure, small volume, simple and sensitive operation, energy saving and high efficiency. It is a multi-purpose filtering equipment with strong applicability.
2. Parameter table
| Thickness | Strand Width | Hole Size | Note |
| 2mm | 5mm | 25×50mm | In Panel
Big Hole |
| 2.5mm | 5mm | 30×60mm | |
| 3mm | 5-10mm | 40×80mm | |
| 2-3mm | 5-15mm | 50×100mm | |
| 3mm | 20-30mm | 90×200mm | |
| 3mm | 20-30mm | 100×250mm | |
| |
| 0.8mm | 1.5mm | 5×10mm | In Roll
Small Hole |
| | |
| 0.3-1.5mm | 0.3-2.5mm | (2-15)mm×(3-30)mm | |
| as you need | as you need | 2×3 | |
| as you need | as you need | 3×4 | |
| as you need | as you need | 4×5 | |
| as you need | as you need | 4×6 | |
| EXPENDED FLATTENED MESH |
| LWD(mm) | SWD(mm) | Strand Width | Strand Gauge | %Free Area | Approx.Kg/m2 |
| 6.05 | 3.38 | 0.5 | 0.8 | 50 | 2.1 |
| 10.24 | 5.84 | 0.5 | 0.8 | 75 | 1.2 |
| 10.24 | 5.84 | 0.9 | 1.2 | 65 | 3.2 |
| 3.80 | 2.10 | 0.8 | 0.6 | 46 | 2.1 |
| 14.20 | 4.80 | 1.8 | 0.9 | 52 | 3.3 |
| 24.40 | 7.10 | 2.4 | 1.1 | 57 | 3.4 |
| 23.20 | 5.80 | 3.2 | 1.5 | 43 | 6.3 |
| 32.70 | 10.90 | 3.2 | 1.5 | 59 | 4 |
| 33.50 | 12.40 | 2.3 | 1.1 | 71 | 2.5 |
| 42.90 | 14.20 | 4.6 | 2.7 | 58 | 8.6 |
| 39.10 | 18.30 | 4.7 | 2.7 | 60 | 7.6 |
| 43.20 | 17.08 | 3.2 | 1.5 | 69 | 3.2 |
| 69.80 | 37.10 | 5.5 | 2.1 | 75 | 3.9 |
3. company introduction
Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
4.application
In the process of application, the filter medium is composed of layers of filter screens such as cylinder and filter screen. In the process of flow, the liquid penetrates to the required fineness level, and the impurity particles are blocked by the filter bag. When reaching the products we use, the filtration accuracy can be changed according to the actual demand.
