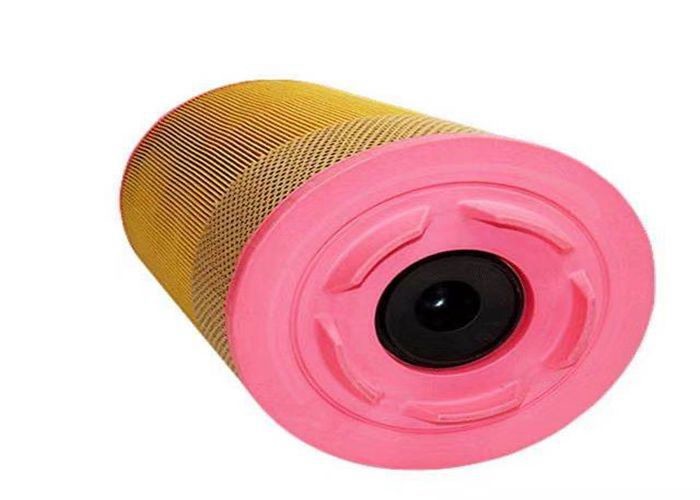

Triangular Industrial Dust Removal Flame Retardant Air Filter Element
1.Technology
The filter element can separate solid particles in liquid or gas, or fully contact different material components to speed up the reaction time, which can protect the normal operation of the equipment or the cleanness of the air. When the fluid enters the filter element with a certain specification filter screen, its impurities are blocked, and the clean fluid flows out through the filter element. The liquid filter element makes the liquid (including oil, water, etc.) clean to the state required by production and life, that is, to make the liquid reach a certain cleanliness. The air filter element makes the polluted air clean to the state required by production and life, that is, to make the air reach a certain cleanliness.
2.Product use
Hydraulic transmission is widely used in construction machinery, such as excavator, tire loader, truck crane, crawler bulldozer, tire crane, self-propelled scraper, grader and vibratory roller.
3.Parameter table
| Model | O.D | I.D | Length | Filtration surface(m2) |
| SFF/Z3266 | Φ324mm | Φ213mm | 660mm | 21m2 |
| SFF/Z3566 | Φ352mm | Φ241mm | 660mm | 23m2 |
| SFF/Z3275 | Φ324mm | Φ213mm | 750mm | 26m2 |
| SFF/Z3288 | Φ324mm | Φ213mm | 880mm | 27m2 |
| SFF/Z3290 | Φ324mm | Φ213mm | 915mm | 28m2 |
| product name: | Air Filter Element |
| Applicable Lndustries | Manufacturing Plant,Retail,Energy & Mining |
| Marketing Type | NEW Product 2020 |
| Core Components | Cap/Filter Media |
| Efficiency | 99.95%.99.5% |
| Porosity | 2μ |
| Brand Name | Chang Feng |
| Certification | ISO9001:2008 |
| Warranty | 1Year |
| color | White / Blue / Red / custom made |
| Filter media | Synthetic Paper |
| Life | 1~2Years |
| Frame material | Gavalnized Steel |
| Construction | Cartridge filter |
| Place of Origin | Hebei, China |
| width | 88mm-2000mm/custom made |
| height | 176mm /custom made |
| Certification | ISO 9001,AFTL |
| After-sales Service Provided | Online support,Overseas service center available |
| shape | Cylindrical Cartidge Filter |
4.Product advantage
Good filtration performance, 2-200 μ M can play a uniform surface filtration performance; Good corrosion resistance, heat resistance, pressure resistance and wear resistance; Stainless steel filter element has uniform pores and accurate filtration accuracy; The flow per unit area of stainless steel filter element is large; Stainless steel filter element is suitable for low temperature and high temperature environment; After cleaning, it can be reused without replacement.

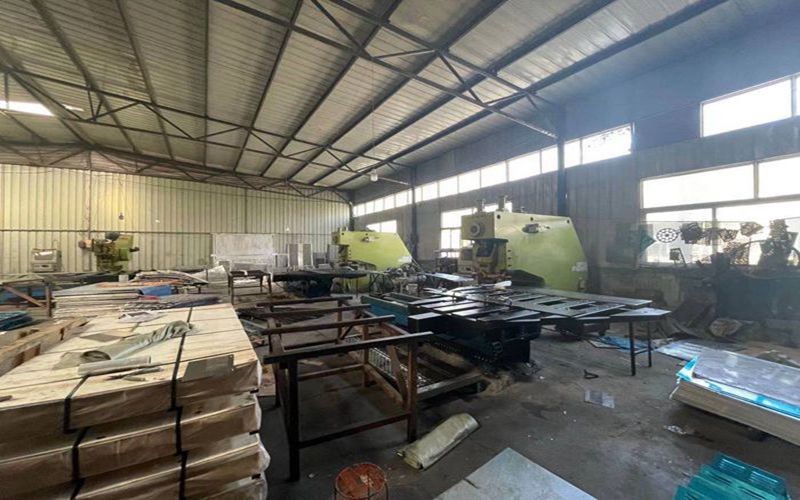

5. Production process
The processing procedures of separation filter element are: blanking, wrapping, edge clamping, assembly, bonding and packaging.
